5749180-1
Manufacturer:
TE Connectivity
Mfr.Part #:
5749180-1
Datasheet:
Description:

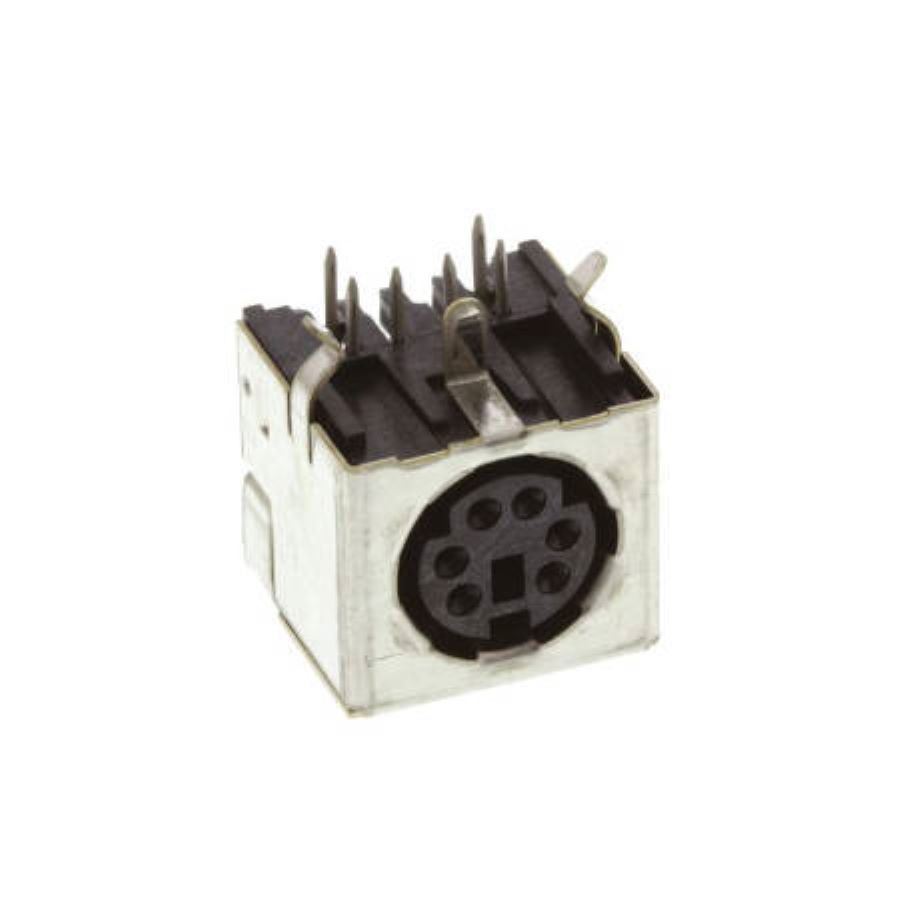

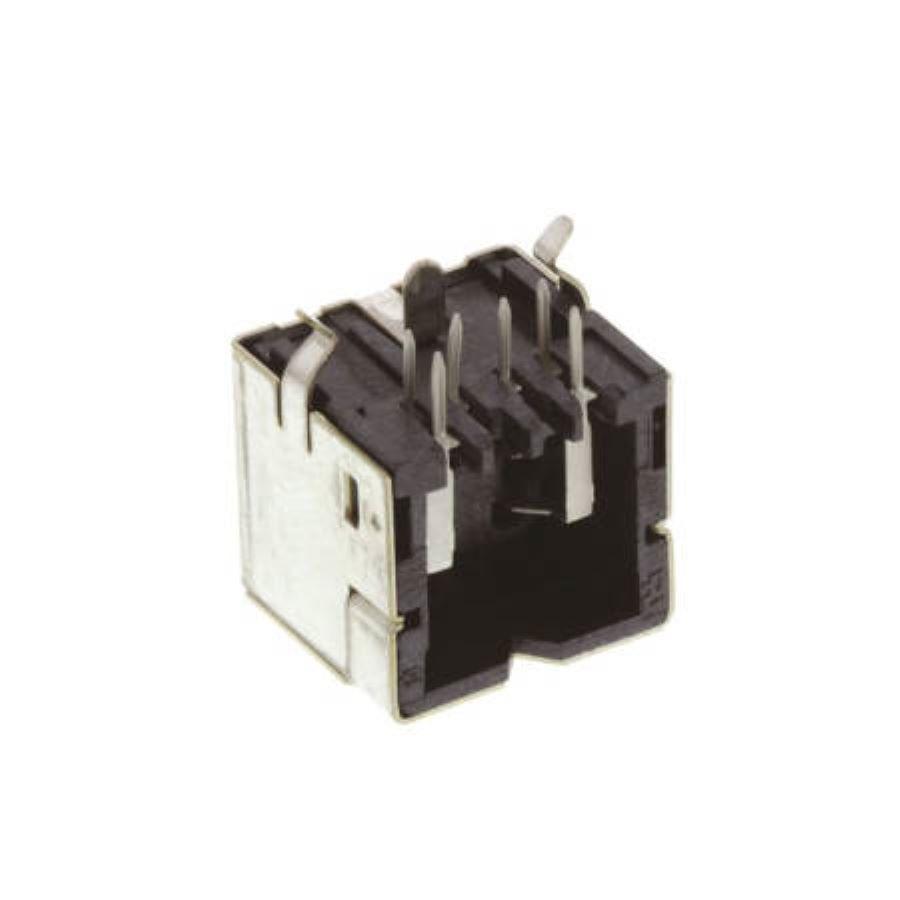

Circular Connectors Through Hole Female Solder Receptacle, Socket
| Parameter | Value |
|---|---|
| Length | 14 mm |
| Width | 12.83 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Height | 13 mm |
| Material | Metal |
| Packaging | Tube |
| Voltage Rating | 30 V |
| Depth | 12.83 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Contact Plating | Tin, Gold |
| Features | Shielded |
| Number of Terminals | 6 |
| Current Rating | 1 A |
| Max Current Rating | 1 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Right Angle |
| Operating Supply Voltage | 30 V |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Color | Black |
| Gender | Receptacle |
| Shielding | Shielded |
| Number of Contacts | 6 |
| Body Material | Plastic |
| Connector Type | Receptacle, Socket |
| Number of Positions | 6 |
| Insulation Material | Plastic |
| Housing Material | Thermoplastic |
| Number of Ports | 1 |
| Fastening Type | Pull, Push |
| Connector System | Wire-to-Board |
| Max Voltage Rating (AC) | 30 V |
| Housing Color | Black |
| Plating | Tin |
| PCB Mounting Orientation | Right Angle |
| Tail Length | 3.18 mm |
| Contact Gender | Female |
| Underplate Material | Nickel |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 week ago) |
| Sealable | No |
| Mating Alignment | With |
| PCB Mount Retention | With |
Stock: 164
Distributors
pcbx
pcbxUnit Price$1.23281
Ext.Price$1.23281
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.23281 | $1.23281 |
| 10 | $1.12680 | $11.26800 |
| 25 | $0.96350 | $24.08750 |
| 50 | $0.90895 | $45.44750 |
| 100 | $0.85750 | $85.75000 |
